CUSTOM BATTERY ENCLOSURES & BATTERY BOXES

Understanding Battery Enclosures: Essential Protection for Battery Systems

Battery enclosures serve as critical protective housings for battery cells, battery packs, and complete battery management systems across a wide range of applications. Whether protecting lithium ion batteries in electric vehicles, housing industrial lead acid battery banks for backup power systems, or containing energy storage systems for renewable energy applications, properly designed battery enclosures are essential for safety, performance, and longevity.

At Bull Metal Products, we specialize in custom fabrication of battery enclosures engineered to meet the specific requirements of your battery technology, application environment, and safety standards. Our battery enclosure solutions combine robust construction, thermal management features, environmental protection, and compliance with industry safety regulations including UL standards, NFPA requirements, and IEC certifications.

What Are Battery Enclosures?

Battery enclosures are specialized protective housings designed to contain and safeguard battery cells, battery modules, battery packs, and associated battery management system (BMS) components. These enclosures provide multiple layers of protection including physical impact resistance, environmental sealing, thermal management, fire containment, and electrical isolation.

Modern battery enclosures must address numerous critical functions: preventing unauthorized access to high voltage battery systems, containing potential thermal runaway events in lithium battery applications, managing heat dissipation for optimal battery performance, protecting against water and dust ingress in outdoor or marine applications, providing electromagnetic shielding for sensitive electronics, and ensuring safe mounting and integration of battery systems into equipment.

Critical Safety Features of Battery Enclosures

Battery enclosure design incorporates numerous safety features tailored to the specific battery chemistry and application. For lithium ion battery enclosures and lithium battery boxes, thermal management and fire containment are paramount concerns. Our lithium battery enclosures feature fire-resistant materials, thermal barrier coatings, pressure relief venting systems, and flame-retardant insulation to mitigate thermal runaway risks.

EV battery enclosures for electric vehicles require crash-worthy construction to protect battery packs during collisions, with reinforced structures designed to absorb impact forces while maintaining battery pack integrity. Industrial battery cabinet enclosures for stationary applications emphasize ventilation for hydrogen gas management in lead acid systems, seismic mounting provisions for critical infrastructure applications, and fire suppression system integration.

Materials Used in Battery Enclosure Manufacturing

The selection of materials for battery enclosures significantly impacts safety, durability, thermal performance, and overall functionality. Bull Metal Products manufactures battery enclosures using a variety of materials optimized for specific applications:

Aluminum Battery Enclosures: Aluminum alloy battery enclosures offer exceptional strength-to-weight ratios, making them ideal for mobile applications including EV battery enclosures, RV battery boxes, and portable power station enclosures. Aluminum provides excellent thermal conductivity for heat dissipation, natural corrosion resistance for outdoor and marine battery enclosures, and electromagnetic shielding properties. Aluminum battery enclosures are commonly used in electric vehicle battery packs, electric bicycle battery systems, electric motorcycle battery boxes, and aerospace battery applications where weight reduction is critical.

Stainless Steel Battery Enclosures: Stainless steel battery cabinets deliver maximum durability and corrosion resistance for harsh environment applications. Stainless steel is the preferred material for marine battery enclosures, offshore wind energy storage enclosures, coastal installation battery cabinets, food processing facility battery systems, pharmaceutical manufacturing battery backups, and any application requiring wash-down capability or exposure to corrosive substances. Stainless steel battery enclosures provide superior fire resistance and longevity in demanding industrial environments.

Cold Rolled Steel Battery Enclosures: Cold rolled steel offers high strength and excellent formability for complex battery enclosure geometries. With proper powder coating or specialized fire-resistant coatings, cold rolled steel battery enclosures provide cost-effective solutions for indoor industrial battery cabinets, telecommunications battery enclosures, data center UPS battery boxes, and commercial energy storage system installations. Cold rolled steel accommodates heavy gauge construction for maximum protection of large format battery systems.

Galvanized Steel Battery Enclosures: Galvanized and galvanneal steel battery enclosures combine steel strength with zinc coating corrosion protection, making them suitable for semi-outdoor applications, utility-scale battery energy storage systems, solar battery storage enclosures, and industrial battery systems in moderately corrosive environments. The zinc coating provides additional corrosion resistance while maintaining weldability and formability.

Battery Enclosure Applications Across Industries

Battery enclosures serve critical functions across numerous industries and applications:

Electric Vehicle Battery Enclosures: EV battery enclosures protect lithium ion battery packs in electric cars, electric trucks, electric buses, and electric motorcycles. These enclosures must withstand crash impact loads, provide thermal management for battery cooling systems, offer electromagnetic shielding for battery management electronics, and maintain IP67 or IP69K sealing against water and dust ingress. EV battery enclosures integrate mounting points for battery pack installation, cable routing provisions, and service access panels.

Energy Storage System Battery Enclosures: ESS and BESS enclosures house large-scale battery installations for grid energy storage, renewable energy integration, peak shaving applications, and microgrid systems. These battery cabinets accommodate multiple battery modules, inverter equipment, switchgear, battery management systems, fire suppression systems, and thermal management equipment. Commercial and utility-scale battery enclosures feature outdoor-rated NEMA 3R or NEMA 4X construction, ventilation systems, and compliance with electrical codes and fire safety standards.

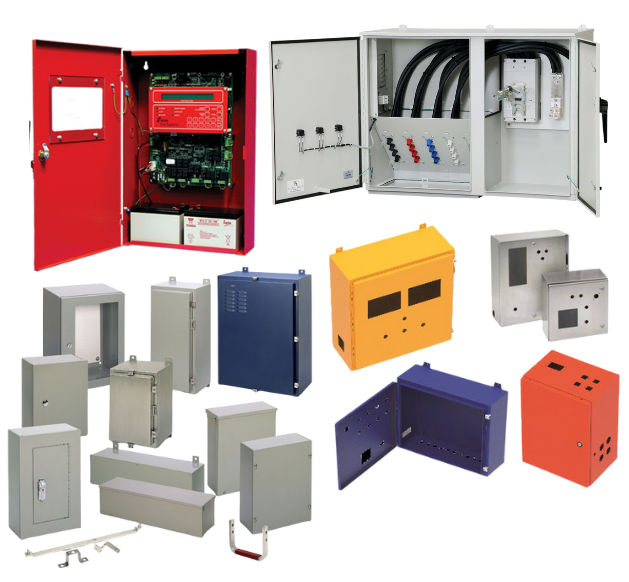

Industrial Battery Cabinet Applications: Industrial battery enclosures provide backup power protection for mission-critical systems including telecommunications infrastructure, data center UPS systems, emergency lighting systems, fire alarm systems, security systems, medical equipment, and industrial control systems. These battery cabinets feature lockable access for security, mounting rails for battery racks, cable management systems, and integration with building management systems.

Material Handling Equipment Battery Enclosures: Forklift battery enclosures, AGV battery boxes, pallet jack battery compartments, aerial lift battery housings, and floor scrubber battery enclosures protect motive power batteries in warehouse and industrial environments. These enclosures accommodate battery changeout procedures, provide spill containment for lead acid batteries, incorporate ventilation for hydrogen gas release, and withstand repeated impact and vibration from equipment operation.

Marine Battery Enclosures: Marine battery boxes protect batteries in boats, yachts, commercial vessels, offshore platforms, and underwater vehicles. Marine battery enclosures require corrosion-resistant construction, waterproof sealing to IP67 or IP68 standards, vented designs for gas management, and secure mounting to withstand wave action and vessel movement. Marine-grade stainless steel or marine-grade aluminum with specialized coatings ensure long-term durability in saltwater environments.

Recreational Vehicle Battery Applications: RV battery enclosures, camper battery boxes, trailer battery compartments, and motorhome battery cabinets protect house batteries and chassis batteries from road vibration, weather exposure, and physical damage. These enclosures accommodate different battery types including lithium RV batteries, AGM batteries, and traditional lead acid batteries, with appropriate ventilation, secure mounting, and convenient access for maintenance.

Solar Energy Battery Storage Enclosures: Solar battery enclosures house energy storage systems for residential solar installations, commercial solar arrays, and off-grid solar power systems. These battery cabinets protect lithium solar batteries or lead acid solar battery banks, integrate with solar charge controllers and inverters, accommodate battery management system components, and provide thermal management for outdoor installation environments.

Custom Battery Enclosure Design and Engineering

Bull Metal Products offers comprehensive custom battery enclosure design and engineering services to meet unique application requirements. Our engineering team works closely with battery pack designers, electrical engineers, and equipment manufacturers to develop battery enclosure solutions optimized for specific battery chemistries, dimensional constraints, mounting requirements, environmental conditions, and regulatory compliance needs.

Our custom battery enclosure capabilities include: thermal analysis and thermal management design, structural impact analysis for crash-worthy EV battery enclosures, finite element analysis (FEA) for structural optimization, CFD analysis for ventilation and cooling optimization, IP rating verification testing, fire containment testing, vibration and shock testing, and full regulatory compliance documentation including UL certification support.

Battery Enclosure Thermal Management Solutions

Effective thermal management is critical for battery performance, safety, and longevity. Bull Metal Products integrates sophisticated thermal management features into battery enclosure designs including:

• Active Cooling Integration: Battery enclosures can accommodate liquid cooling plates, cold plates, refrigerant lines, and forced air cooling systems for high-power lithium battery applications. Our designs integrate cooling system mounting provisions, coolant routing, and thermal interface materials.


• Passive Thermal Management: Aluminum battery enclosures provide natural heat spreading through high thermal conductivity material. Phase change material (PCM) integration provides thermal buffering for temperature stability. Heat sink features including fins and extended surface area enhance convective cooling.


• Ventilation Systems: Natural convection venting, forced air ventilation fans, filtered air intake vents, and exhaust vents maintain optimal operating temperatures. Gas venting systems for lithium battery enclosures include pressure relief valves and flame arrestors for safety.


• Thermal Insulation: Fire-resistant insulation materials, thermal barriers, and heat shields protect adjacent components from battery heat generation and contain heat in thermal runaway scenarios.

Environmental Protection and IP Ratings for Battery Enclosures

Battery enclosures must provide appropriate environmental sealing based on installation location and operating conditions. Bull Metal Products manufactures battery enclosures to various IP (Ingress Protection) ratings:

• IP65 Battery Enclosures: Dust-tight and protected against water jets from any direction. Suitable for indoor industrial battery cabinets and protected outdoor installations.


• IP66 Battery Enclosures: Dust-tight with protection against powerful water jets. Appropriate for outdoor battery energy storage systems and utility-scale installations.


• IP67 Battery Enclosures: Dust-tight and protected against temporary immersion in water up to 1 meter depth. Required for EV battery enclosures, marine battery applications, and underground installations.


• IP68 Battery Enclosures: Dust-tight with continuous immersion protection. Essential for submersible battery applications and underwater vehicle battery systems.


• IP69K Battery Enclosures: Highest level protection against dust and high-pressure, high-temperature water jets. Required for food processing battery systems and harsh industrial environments.

Our gasket systems, sealed cable entry solutions, breather vents with filters, and precision-machined sealing surfaces ensure reliable environmental protection throughout the battery enclosure service life.

Fire Safety and Thermal Runaway Mitigation in Battery Enclosures

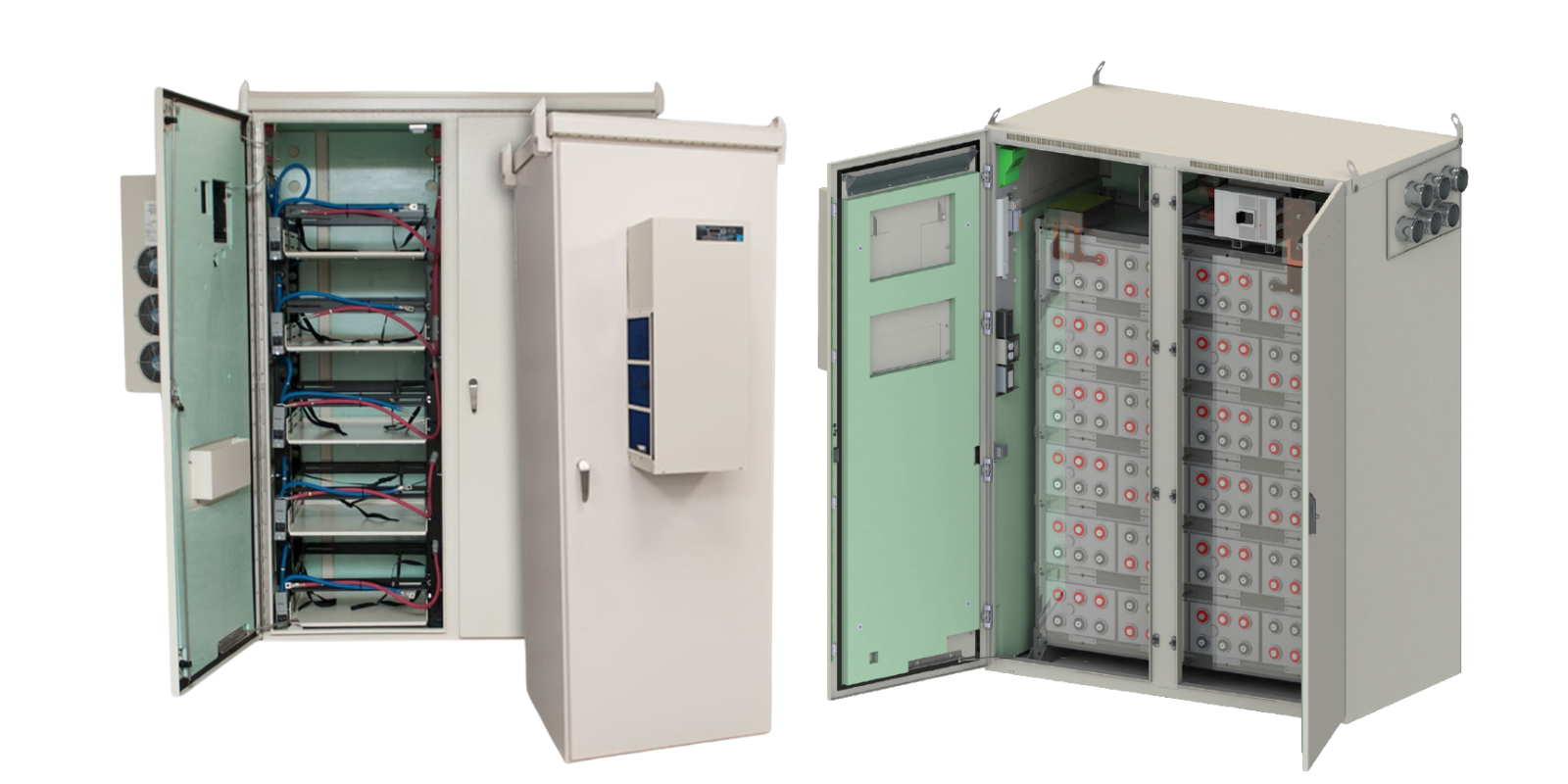

Lithium ion battery enclosures require specialized fire safety features to address thermal runaway risks. Bull Metal Products incorporates multiple layers of fire protection:

• Fire-Resistant Materials: Steel construction with fire-resistant powder coating, ceramic fiber insulation panels, intumescent fire barriers that expand when exposed to heat, and flame-retardant gaskets and seals.


• Thermal Runaway Containment: Cell-level or module-level fire barriers prevent thermal propagation between battery modules. Explosion-proof venting with flame arrestors safely release gases while preventing external flame entry. Pressure relief mechanisms prevent catastrophic pressure buildup.


• Fire Suppression Integration: Battery enclosures accommodate clean agent fire suppression systems including Novec 1230, aerosol fire suppression systems, water mist systems, and integration with building fire alarm systems.


• Detection and Monitoring: Mounting provisions for smoke detectors, heat detectors, temperature sensors, gas sensors, and integration with battery management system monitoring for early warning of thermal events.

Battery Enclosure Manufacturing Capabilities

Bull Metal Products offers comprehensive battery enclosure manufacturing capabilities including:

• Precision Laser Cutting: High-accuracy laser cutting of steel and aluminum sheet metal for battery enclosure panels, with complex geometries, ventilation patterns, and mounting hole precision tolerances.


• CNC Forming and Bending: Computer-controlled press brake forming ensures consistent angle accuracy and repeatability for battery enclosure components including side panels, doors, mounting brackets, and structural reinforcements.


• Robotic and Manual Welding: MIG welding, TIG welding, spot welding, and resistance welding create strong, sealed joints. Welding procedures qualified for battery enclosure applications ensure structural integrity and leak-tight construction.


• Powder Coating and Specialty Finishes: Electrostatically applied powder coating provides durable, corrosion-resistant finish with multiple color options. Fire-resistant powder coatings, thermal barrier coatings, conductive coatings for EMI shielding, and specialty marine coatings available.


• Assembly Integration: Complete battery enclosure assembly including hinges, latches, locks, cable glands, connectors, mounting hardware, gaskets, ventilation components, and battery management system integration.


• Testing and Quality Assurance: IP rating testing, thermal cycling testing, vibration testing, dimensional inspection, leak testing, and electrical continuity testing ensure every battery enclosure meets specifications.

Regulatory Compliance for Battery Enclosures

Battery enclosures must comply with numerous safety standards and regulations depending on application and installation location. Bull Metal Products has extensive experience manufacturing battery enclosures compliant with:

• UL Standards: UL 9540 for Energy Storage Systems, UL 1973 for batteries for use in stationary applications, UL 2054 for household and commercial batteries, UL 2271 for EV battery systems, and UL 2580 for EV battery safety.


• IEC Standards: IEC 62619 for lithium secondary cells and batteries for industrial applications, IEC 62620 for large format lithium ion cells, IEC 61427 for batteries in renewable energy systems, and IEC 60529 for IP rating classifications.


• Fire Safety Codes: NFPA 1 Fire Code requirements for energy storage systems, NFPA 70 National Electrical Code, NFPA 855 Standard for Installation of Stationary Energy Storage Systems, and International Fire Code (IFC) requirements.


• Automotive Standards: ISO 6469 for electric vehicle battery safety, SAE J2464 for EV battery abuse testing, FMVSS 305 federal motor vehicle safety standards, and various OEM-specific battery enclosure requirements.


• Marine Standards: ABYC standards for marine battery installations, U.S. Coast Guard regulations, classification society requirements (ABS, DNV, Lloyd's Register), and marine battery enclosure specifications.

Battery Enclosure Customization Options

Bull Metal Products offers extensive customization options for battery enclosures to meet unique application requirements:

• Size and Configuration: Custom dimensions for any battery pack size or module configuration, single or multi-bay battery cabinet designs, rack-mount battery enclosures, wall-mount battery boxes, and floor-standing battery cabinet systems.


• Access and Security: Hinged doors with multiple hinge configurations, removable panels for service access, lockable battery enclosures with cam locks or padlock provisions, electronic lock integration, and tamper-evident features.


• Mounting Options: Floor mounting with seismic-rated anchoring, wall mounting brackets, vehicle mounting systems for EV battery enclosures, shock-isolated mounting for mobile applications, and quick-disconnect mounting systems.


• Cable Management: Cable entry glands with IP-rated sealing, cable routing channels, strain relief provisions, connector mounting panels, and high-voltage cable isolation features.


• Monitoring Integration: Sensor mounting provisions, display window integration, BMS mounting brackets, temperature monitoring point integration, and communication cable routing.


• Branding and Identification: Custom screen printing, warning labels and safety placards, company logos and branding, color-matched powder coating, and asset identification markings.

Why Choose Bull Metal Products for Battery Enclosures

With 65 years of experience in custom metal fabrication, Bull Metal Products is your trusted partner for battery enclosure manufacturing:

• Engineering Expertise: Our engineering team understands battery technology, thermal management principles, safety requirements, and regulatory compliance. We provide design assistance, optimization recommendations, and complete engineering support from concept through production.


• Quality Manufacturing: ISO-compliant manufacturing processes, trained welding technicians, quality inspection at every stage, and comprehensive testing ensure every battery enclosure meets or exceeds specifications.


• Fast Turnaround: Efficient production processes, flexible manufacturing capacity, and responsive project management deliver battery enclosures on schedule for prototype development, pilot production, and full-scale manufacturing.


• Cost-Effective Solutions: Competitive pricing through efficient manufacturing, design optimization for manufacturability, and value engineering recommendations reduce total program costs without compromising quality or safety.


• Single-Source Manufacturing: Complete battery enclosure fabrication under one roof including cutting, forming, welding, finishing, assembly, and testing eliminates coordination challenges and ensures quality control.


• Scalability: From prototype battery enclosures through high-volume production, our manufacturing capabilities scale to meet program requirements. Low minimum order quantities support R&D programs while automated production systems handle large-scale deployments.


• Made in USA: Domestic manufacturing provides supply chain security, responsive communication, quality assurance, and support for American manufacturing. Our Connecticut facility serves customers throughout North America.

Battery Enclosure Design Considerations

Successful battery enclosure design requires careful consideration of multiple factors:

Battery Chemistry Requirements: Different battery chemistries demand different enclosure approaches. Lithium ion batteries require thermal runaway mitigation, fire containment, and pressure relief. Lead acid batteries need ventilation for hydrogen off-gassing and acid spill containment. Understanding battery technology informs appropriate enclosure design.

Operating Environment: Installation location dramatically impacts battery enclosure specifications. Indoor installations may require only basic protection while outdoor battery enclosures need weatherproofing, UV-resistant finishes, and expanded temperature ranges. Marine environments demand corrosion-resistant materials and sealed construction. Industrial settings may require explosion-proof designs or hazardous location ratings.

Maintenance Access: Battery maintenance requirements influence enclosure design. Applications with frequent battery replacement need easy-open access, while sealed maintenance-free batteries can utilize more permanent enclosure construction. Service access panels, removable sides, and hinged doors balance security with maintenance convenience.

Weight Constraints: Mobile applications including EV battery enclosures prioritize lightweight construction through aluminum alloys and structural optimization. Stationary installations can utilize heavier gauge steel for maximum protection without weight penalties. Load-bearing requirements affect material selection and structural design.

Thermal Management Needs: Battery power requirements drive thermal management complexity. High-discharge applications generate significant heat requiring active cooling integration. Low-power applications may rely on natural convection. Climate conditions affect cooling system requirements and insulation needs.

Battery Enclosure Testing and Validation

Comprehensive testing validates battery enclosure performance, safety, and reliability:

• Environmental Testing: Temperature cycling across operating temperature range, humidity exposure testing, salt spray corrosion testing for marine battery enclosures, UV exposure testing for outdoor installations, and IP rating verification.


• Mechanical Testing: Vibration testing to automotive or aerospace standards, shock testing for impact resistance, drop testing for portable battery enclosures, crush testing for structural integrity, and mounting point load testing.


• Thermal Testing: Thermal imaging analysis, heat dissipation measurement, thermal runaway propagation testing, fire resistance testing, and thermal cycling endurance testing.


• Safety Testing: Flammability testing of materials, pressure relief valve functionality, ventilation effectiveness, electromagnetic compatibility testing, and compliance verification for applicable standards.

Emerging Battery Enclosure Technologies

Battery enclosure technology continues evolving with advances in battery technology and application demands:

Smart Battery Enclosures: Integration of IoT sensors, wireless monitoring, predictive maintenance capabilities, remote diagnostics, and cloud connectivity enable proactive battery system management. Smart enclosures monitor temperature, humidity, vibration, door access, and communicate battery health information.

Lightweight Materials: Carbon fiber composite battery enclosures, advanced aluminum alloys, and hybrid material constructions reduce weight for electric vehicle applications while maintaining structural integrity and safety performance.

Modular Battery Enclosure Systems: Standardized building block designs enable flexible capacity scaling, simplified manufacturing, easier service and replacement, and adaptation to various battery chemistries and configurations.

Enhanced Fire Suppression: Integrated aerosol fire suppression, advanced thermal barriers, improved venting technologies, and real-time fire detection provide enhanced safety for lithium battery enclosures in sensitive installations.

Industries We Serve with Battery Enclosures

Bull Metal Products manufactures battery enclosures for diverse industries:

• Automotive and Electric Vehicle Manufacturing - EV battery packs, hybrid vehicle batteries, electric bus battery systems
• Renewable Energy and Energy Storage - Solar battery storage, wind energy storage, grid-scale battery systems
• Telecommunications - Cell tower backup batteries, network equipment UPS systems, 5G infrastructure batteries
• Data Centers - UPS battery cabinets, backup power systems, critical infrastructure protection
• Material Handling - Forklift batteries, AGV power systems, pallet jack batteries, aerial lift batteries
• Marine and Maritime - Boat batteries, yacht electrical systems, commercial vessel power, offshore platforms
• Medical Equipment - Hospital backup power, portable medical device batteries, diagnostic equipment power
• Industrial Automation - Robot batteries, automated equipment power, industrial control system backup power
• Aerospace and Defense - Aircraft batteries, UAV power systems, military equipment batteries
• Consumer Electronics - Portable power station enclosures, large format consumer battery products
• Railroad and Transit - Train battery systems, railway signaling backup power, light rail battery storage
• Oil and Gas - Remote monitoring equipment batteries, pipeline monitoring power, offshore platform backup power

Battery Enclosure Project Process

Our structured approach ensures successful battery enclosure development:

1. Requirements Analysis: Understanding battery specifications, application environment, safety requirements, regulatory compliance needs, production volumes, and timeline requirements.

2. Concept Design: Developing battery enclosure concepts addressing all requirements, material selection, thermal management approach, structural design, and manufacturing feasibility.

3. Detailed Engineering: CAD modeling, structural analysis, thermal analysis, drawing package development, bill of materials, and compliance documentation.

4. Prototype Development: Prototype battery enclosure fabrication, fit verification, thermal testing, design refinement, and design validation.

5. Testing and Validation: Comprehensive testing per applicable standards, design optimization based on results, compliance verification, and customer approval.

6. Production Implementation: Manufacturing process development, quality control procedures, production tooling, and full-scale manufacturing launch.

7. Ongoing Support: Production quality monitoring, continuous improvement initiatives, engineering change management, and long-term supply partnership.
